Description

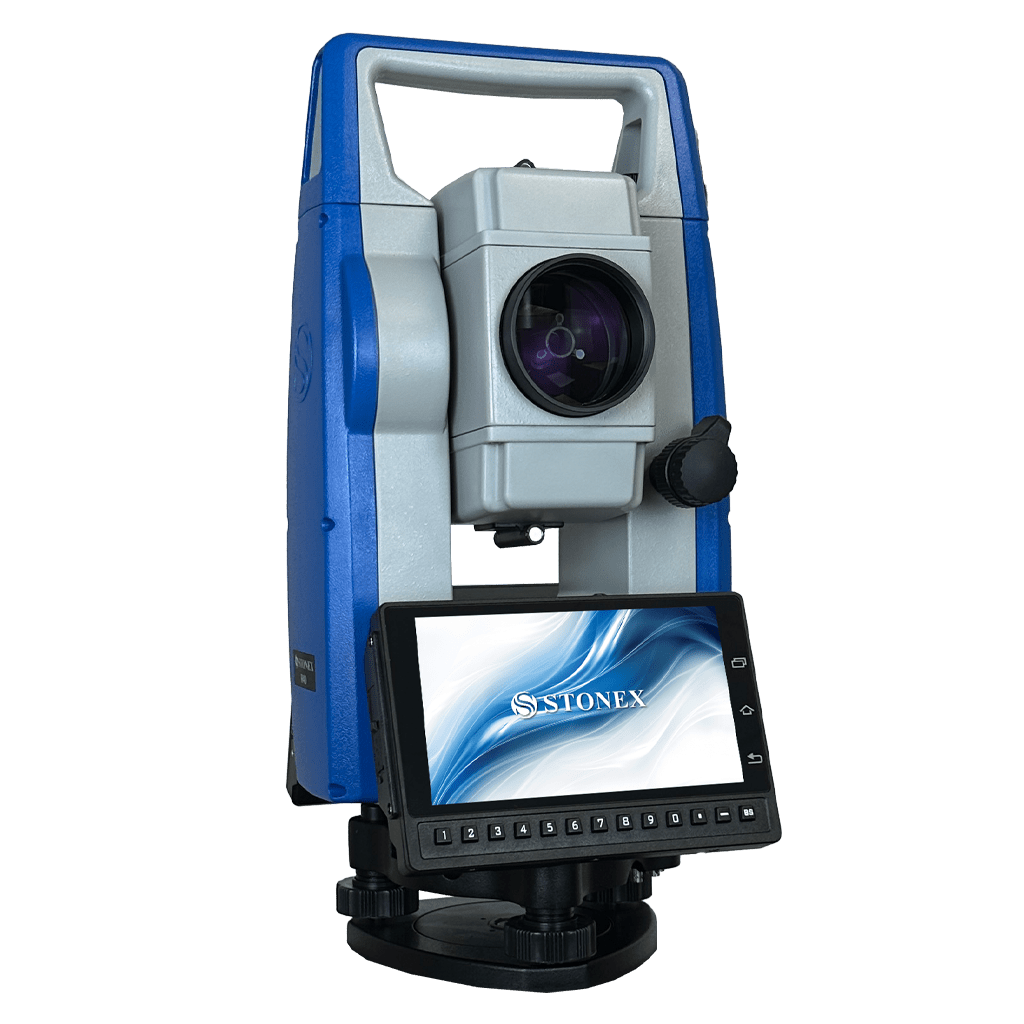

R40 is a mechanical total station featuring Android 11 Operating System and equipped with Cube-a software on board. Designed for accuracy and efficiency, it is available in two versions with 1“/2” angular accuracy, and features accuracy on distance measurements of 2mm + 2ppm in prism mode and 3mm + 2ppm without prism.
The possibility to measure up to 5000m with prism and 1000m in reflectorless mode makes it a versatile instrument for various surveying tasks. Equipped with 4GB RAM and 64GB ROM, it supports efficient data processing and storage.
With built-in GSM connectivity, the R40 allows the user to stay connected in the field, sending and receiving data or accessing remote support. R40 is characterized by Cube-a onboard application, that can integrate and manage GNSS survey data and total station information for streamlined data management.
Bluetooth supports easy data transfer between the station and other devices, while dual 5.5-inch TFT LCD screens provide clear visibility in any lighting. The intuitive 13-key keypad ensures quick access to essential functions, making fieldwork easier than ever.
ANDROID 11 OS
R40, with Android 11 operating system and pre-installed with the Cube-a software, facilitates the integration of data from GNSS surveys and total stations. Bluetooth simplifies communication and data exchange between the station and the GNSS controller.
ANGLES AND EDM
R40 is available with an angle accuracy of 1″/2″. It offers precision measurements of 2mm + 2ppm in prism mode and 3mm + 2ppm in reflectorless mode. This instrument is capable of measuring distances up to 5000m with a prism and 1000m in reflectorless mode.
PERFORMANCE
The total station features 4GB of RAM and 64GB of ROM, providing ample memory for efficient data processing and storage. R40 is equipped with a GSM module able to guarantee connectivity right in the field and transfer data between the field to the office in a very fast and simple way.
DISPLAY AND KEYBOARD
R40 mounts two high-quality 5.5-inch TFT LCD screens boasting a resolution of 720 x 1280 pixels. In addition, the total station is equipped with an intuitive 13-key keypad, designed for efficient operation and quick access to essential functions, and a trigger key to start the measurement.
CUBE-A ON BOARD
The Cube-a software, pre-installed on the R40, offers a wide range of features designed to enhance the efficiency and precision of surveying tasks. Notable capabilities include direct I/O support for total stations and Bluetooth connectivity for GNSS receivers, allowing seamless integration of data from multiple sources.
